Many people do not know what a Swan chair look like. Its time to open up the internet browser and search for images. Or if you have an actual Swan chair with you, your lucky. You can look at a real model while modeling. This would simplify decisions and remove the need for guessing certain details that you are not available with image searches alone.
::很多人不知道天椅子是什么样子.现在是打开互联网浏览器并搜索图像的时候了.或者如果你带着真正的天椅子,你很幸运.你可以在建模时看一个真实的模型.这将简化决策,消除猜测某些细节的需要,你不能仅仅通过图像搜索获得.

We need to know what we are modeling look like. You can't do this without references to guide you. A simple image search with Google would provide you the references you need.
::我们需要知道我们在模拟的样子. 没有参考来指导你,你就无法做到这一点. 简单的谷歌图像搜索将为你提供所需的参考.

Gather several images that gives you different views of the chair. A front and a side view is great to use as a background image to guide as while modeling. Also, gather at least one image that shows the chair at an oblique angle so that it will provide a much more "3d" view. This will shows more clearly the shape of the chair, more than the front and side view alone would give you.
::收集几张图片,让你对椅子有不同的看法.前面和侧面的图片很好用作背景图像,以指导模型制作.还收集至少一个图片,以斜角度显示椅子,以便提供更 "3D" 的视图.这将更清楚地显示椅子的形状,比前面和侧面的视图本身能给你更多.

Take time to study the model. For simple models like this, it would be quite quick, especially with experience. For this project, the loops are as shown bellow.
::需要花时间研究模型.对于像这样的简单模型,这将是相当快的,特别是有经验.对于这个项目,循环如下所示.

Swan chair's loops

The pink loop goes around the edge of the chair defining the chair's edges and thickness. The light green, light blue and light purple loops follows and create the form of the chair. The crossing green loops forms the bottom of the chair. The light blue and green loops contribute for the form of the "wings", while the purple and green loops form the back. Its a simple loop structure, its topologically (sorry for using the term) the same as this cube extruded to form a T (upside down so the loops would match more).
::粉红环绕着椅子的边缘,定义了椅子的边缘和厚度. 浅绿色,浅蓝色和浅紫色环绕着椅子的形状,形成椅子的形状. 交叉的绿色环绕形成了椅子的底部. 浅蓝色和绿色环绕形成了"翅膀"的形状,而紫色和绿色环绕形成了背部. 它是一个简单的环绕结构,它的拓学 (对不起使用这个术语) 与这个立方体挤出形成T (倒置,所以环绕会更匹配). 由于它是一个单一的圆形,它是一个单一的圆形,它是一个单一的圆形,它是一个单一的圆形,它是一个单一的圆形,它是一个单一的圆形,它是一个单一

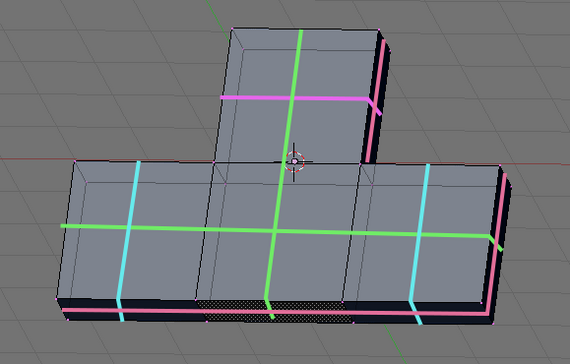

The T shape piece loops

While modeling keep these loops in mind and try to achieve the loops. For this project, the loops are achieved with simple extrusions of a cube, just like the T piece above, but in a form that looks more like the chair.
::模拟时要记住这些环,并尝试实现这些环. 在这个项目中,环是通过简单的立方体挤出而实现的,就像上面的T片,但在一个更像椅子的形式.
